5 Data transformation

5.1 Introduction

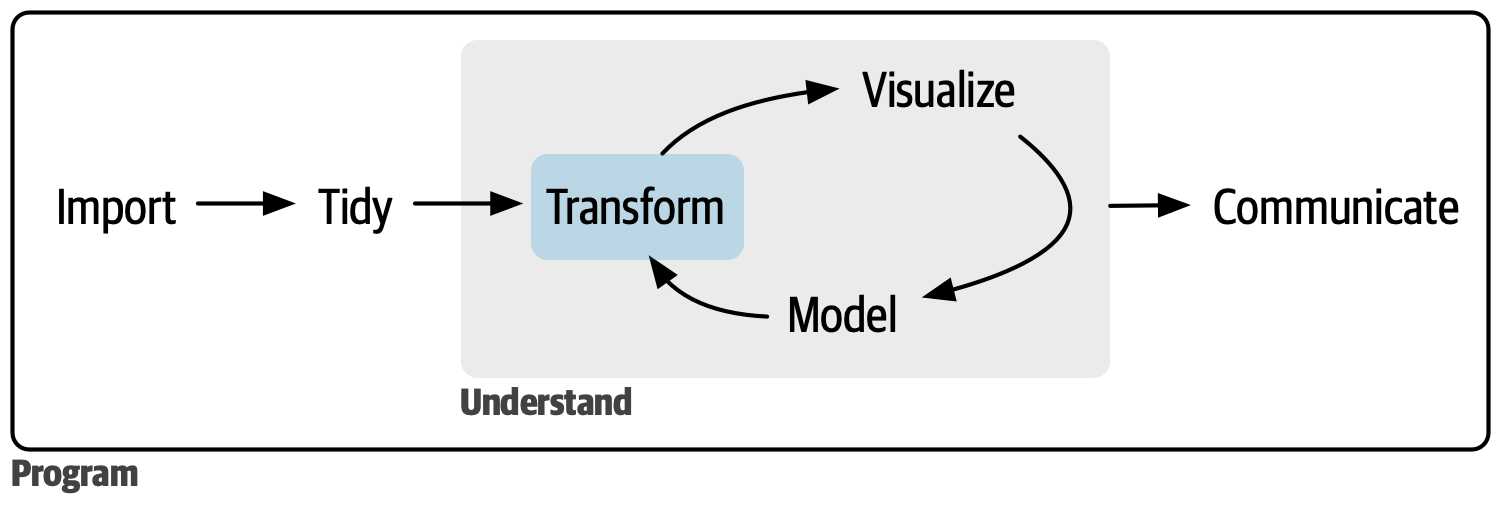

Visualisation is an important tool for insight generation, but it is rare that you get the data in exactly the right form you need. Often you’ll need to create some new variables or summaries, or maybe you just want to rename the variables or reorder the observations in order to make the data a little easier to work with. You’ll learn how to do all that (and more!) in this chapter, which will teach you how to transform your data using the dplyr package and a new dataset on flights departing New York City in 2013.

5.1.1 Prerequisites

In this chapter we’re going to focus on how to use the dplyr package, another core member of the tidyverse. We’ll illustrate the key ideas using data from the nycflights13 package, and use ggplot2 to help us understand the data.

Take careful note of the conflicts message that’s printed when you load the tidyverse. It tells you that dplyr overwrites some functions in base R. If you want to use the base version of these functions after loading dplyr, you’ll need to use their full names: stats::filter() and stats::lag().

5.1.2 nycflights13

To explore the basic data manipulation verbs of dplyr, we’ll use nycflights13::flights. This data frame contains all 336,776 flights that departed from New York City in 2013. The data comes from the US Bureau of Transportation Statistics, and is documented in ?flights.

flights
#> # A tibble: 336,776 x 19
#>    year month   day dep_time sched_dep~1 dep_d~2 arr_t~3 sched~4 arr_d~5 carrier
#>   <int> <int> <int>    <int>       <int>   <dbl>   <int>   <int>   <dbl> <chr>
#> 1  2013     1     1      517         515       2     830     819      11 UA
#> 2  2013     1     1      533         529       4     850     830      20 UA
#> 3  2013     1     1      542         540       2     923     850      33 AA
#> 4  2013     1     1      544         545      -1    1004    1022     -18 B6
#> 5  2013     1     1      554         600      -6     812     837     -25 DL
#> 6  2013     1     1      554         558      -4     740     728      12 UA
#> # ... with 336,770 more rows, 9 more variables: flight <int>, tailnum <chr>,
#> #   origin <chr>, dest <chr>, air_time <dbl>, distance <dbl>, hour <dbl>,
#> #   minute <dbl>, time_hour <dttm>, and abbreviated variable names
#> #   1: sched_dep_time, 2: dep_delay, 3: arr_time, 4: sched_arr_time,
#> #   5: arr_delay
#> # i Use `print(n = ...)` to see more rows, and `colnames()` to see all variable names

Depending on how you view this data frame, it prints a little differently than you might expect. If you’re running this code in RStudio’s source pane, then you’ll see a version that allows you to scroll left and right through columns (triangles to the left and/or right of the column names) and up and down through rows (“Previous”, numbers, and “Next” at the bottom right):

RStudio changes the number of columns you can see based on the width of your source pane. In fact, if you make the source pane narrower (by dragging the vertical divider line to the left), RStudio will update the view to show fewer columns:

If you’re running this code in RStudio’s console pane, then you’ll only see the first few rows and all the columns that fit on one screen:

RStudio won’t automatically resize the columns that you’ve already printed in the console pane, but it’ll print fewer columns if you run flights again:

Finally, if you’re not viewing this code in RStudio at all, but as an HTML file in your browser, it’ll look a lot like the console-pane version without color:

These differences in appearance are just that: superficial differences that are only about how flights is printed. For example, in all 5 screenshots you can see that the entire data frame has 336,776 rows and 19 columns (the first few being year, month, day, dep_time, etc.). The underlying data doesn’t change, just the way R or RStudio is showing it to you. While this may seem maddening, it’s actually an advantage of tibbles like flights. Tibbles are data frames, but slightly tweaked to work better in the tidyverse (e.g., when you print data frames that aren’t tibbles, you get a huge output that isn’t particularly helpful). For now, you don’t need to worry about the differences; we’ll come back to tibbles in more detail in wrangle.

Understanding the difference between what’s actually in an object vs. how it’s printed is one of the toughest things for people who are new to using R. When you tell R flights, you’re really telling it “Print flights in a way that’s suited for the type of thing that flights is”.

You might also have noticed the row of three (or four) letter abbreviations under the column names. These describe the type of each variable:

  • int stands for integers.

  • dbl stands for doubles, or real numbers.

  • chr stands for character vectors, or strings.

  • dttm stands for date-times (a date + a time).

There are three other common types of variables that aren’t used in this dataset but you’ll encounter later in the book:

  • lgl stands for logical, vectors that contain only TRUE or FALSE.

  • fctr stands for factors, which R uses to represent categorical variables with fixed possible values.

  • date stands for dates.

Finally, we’ll tweak how tibbles are printed to make them a little friendlier to read in the console/HTML views (it won’t change the source pane view). We’ll override a default so tibbles are printed with un-abbreviated column names. In the HTML file, compare the abbreviated 5th column name above (sched_dep~1) with the un-abbreviated column name after we override the default (sched_dep_time):

##Don't abbreviate column names when printing tibbles
options(pillar.min_title_chars = Inf)
##Print flights again---note column names are un-abbreviated so fewer columns fit
flights
#> # A tibble: 336,776 x 19
#>    year month   day dep_time sched_dep_time dep_delay arr_time sched_arr_time
#>   <int> <int> <int>    <int>          <int>     <dbl>    <int>          <int>
#> 1  2013     1     1      517            515         2      830            819
#> 2  2013     1     1      533            529         4      850            830
#> 3  2013     1     1      542            540         2      923            850
#> 4  2013     1     1      544            545        -1     1004           1022
#> 5  2013     1     1      554            600        -6      812            837
#> 6  2013     1     1      554            558        -4      740            728
#> # ... with 336,770 more rows, and 11 more variables: arr_delay <dbl>,
#> #   carrier <chr>, flight <int>, tailnum <chr>, origin <chr>, dest <chr>,
#> #   air_time <dbl>, distance <dbl>, hour <dbl>, minute <dbl>, time_hour <dttm>
#> # i Use `print(n = ...)` to see more rows, and `colnames()` to see all variable names

5.1.3 dplyr basics

In this chapter you are going to learn the five key dplyr functions that allow you to solve the vast majority of your data manipulation challenges:

  • Pick observations by their values (filter()).
  • Reorder the rows (arrange()).
  • Pick variables by their names (select()).
  • Create new variables with functions of existing variables (mutate()).
  • Collapse many values down to a single summary (summarise()).

These can all be used in conjunction with group_by() which changes the scope of each function from operating on the entire dataset to operating on it group-by-group. These six functions provide the verbs for a language of data manipulation.

All verbs work similarly:

  1. The first argument is a data frame.

  2. The subsequent arguments describe what to do with the data frame, using the variable names (without quotes).

  3. The result is a new data frame.

Together these properties make it easy to chain together multiple simple steps to achieve a complex result. Let’s dive in and see how these verbs work.

5.2 filter() and slice(): Return a subset of rows

filter() allows you to subset observations based on their values. The first argument is the name of the data frame. The second and subsequent arguments are the expressions that filter the data frame. For example, we can select all flights on January 1st with:

filter(flights, month == 1, day == 1)
#> # A tibble: 842 x 19
#>    year month   day dep_time sched_dep_time dep_delay arr_time sched_arr_time
#>   <int> <int> <int>    <int>          <int>     <dbl>    <int>          <int>
#> 1  2013     1     1      517            515         2      830            819
#> 2  2013     1     1      533            529         4      850            830
#> 3  2013     1     1      542            540         2      923            850
#> 4  2013     1     1      544            545        -1     1004           1022
#> 5  2013     1     1      554            600        -6      812            837
#> 6  2013     1     1      554            558        -4      740            728
#> # ... with 836 more rows, and 11 more variables: arr_delay <dbl>,
#> #   carrier <chr>, flight <int>, tailnum <chr>, origin <chr>, dest <chr>,
#> #   air_time <dbl>, distance <dbl>, hour <dbl>, minute <dbl>, time_hour <dttm>
#> # i Use `print(n = ...)` to see more rows, and `colnames()` to see all variable names

When you run that line of code, dplyr executes the filtering operation and returns a new data frame. dplyr functions never modify their inputs, so if you want to save the result, you’ll need to use the assignment operator, <-:

jan1 <- filter(flights, month == 1, day == 1)

R either prints out the results, or saves them to a variable. If you want to do both, you can wrap the assignment in parentheses:

(dec25 <- filter(flights, month == 12, day == 25))
#> # A tibble: 719 x 19
#>    year month   day dep_time sched_dep_time dep_delay arr_time sched_arr_time
#>   <int> <int> <int>    <int>          <int>     <dbl>    <int>          <int>
#> 1  2013    12    25      456            500        -4      649            651
#> 2  2013    12    25      524            515         9      805            814
#> 3  2013    12    25      542            540         2      832            850
#> 4  2013    12    25      546            550        -4     1022           1027
#> 5  2013    12    25      556            600        -4      730            745
#> 6  2013    12    25      557            600        -3      743            752
#> # ... with 713 more rows, and 11 more variables: arr_delay <dbl>,
#> #   carrier <chr>, flight <int>, tailnum <chr>, origin <chr>, dest <chr>,
#> #   air_time <dbl>, distance <dbl>, hour <dbl>, minute <dbl>, time_hour <dttm>
#> # i Use `print(n = ...)` to see more rows, and `colnames()` to see all variable names

This is an important point: Running filter(flights, month == 1, day == 1) by itself only displays the output of the filtering operation; it does not change the original dataframe. See exercise 1 at the bottom of this section.

Finally, slice() allows you to subset observations based on their row number:

slice(flights, 10000:10005)
#> # A tibble: 6 x 19
#>    year month   day dep_time sched_dep_time dep_delay arr_time sched_arr_time
#>   <int> <int> <int>    <int>          <int>     <dbl>    <int>          <int>
#> 1  2013     1    12     1024           1025        -1     1122           1131
#> 2  2013     1    12     1027           1030        -3     1344           1355
#> 3  2013     1    12     1027           1030        -3     1341           1340
#> 4  2013     1    12     1035           1039        -4     1306           1330
#> 5  2013     1    12     1039           1045        -6     1341           1358
#> 6  2013     1    12     1041           1043        -2     1339           1340
#> # ... with 11 more variables: arr_delay <dbl>, carrier <chr>, flight <int>,
#> #   tailnum <chr>, origin <chr>, dest <chr>, air_time <dbl>, distance <dbl>,
#> #   hour <dbl>, minute <dbl>, time_hour <dttm>
#> # i Use `colnames()` to see all variable names

This is occasionally useful when you’re just exploring your data, but you should almost never count on it when you’re formulating data-wrangling code. Row numbers can change, so any code that relies on them to uniquely identify observations is easily breakable. It also makes for code that’s harder to understand; when you look at your code 6 months later, it’s easy to work backwards and figure out why you filter()ed by a particular attribute, but very difficult to identify why you slice()d by some random row numbers!

If you simply want a random sampling of rows, use slice_sample(). If you want to ensure that you get the same random sampling each time, set a random seed beforehand:

set.seed(404)
slice_sample(flights, n=5)
#> # A tibble: 5 x 19
#>    year month   day dep_time sched_dep_time dep_delay arr_time sched_arr_time
#>   <int> <int> <int>    <int>          <int>     <dbl>    <int>          <int>
#> 1  2013     4     3     1029           1015        14     1215           1205
#> 2  2013     6     2     1259           1300        -1     1555           1555
#> 3  2013     2     4     1324           1330        -6     1647           1705
#> 4  2013     5     2     1008           1005         3     1243           1257
#> 5  2013    12    19     1021            947        34     1446           1430
#> # ... with 11 more variables: arr_delay <dbl>, carrier <chr>, flight <int>,
#> #   tailnum <chr>, origin <chr>, dest <chr>, air_time <dbl>, distance <dbl>,
#> #   hour <dbl>, minute <dbl>, time_hour <dttm>
#> # i Use `colnames()` to see all variable names

5.2.1 Comparisons

To use filtering effectively, you have to know how to select the observations that you want using the comparison operators. R provides the standard suite: >, >=, <, <=, != (not equal), and == (equal).

When you’re starting out with R, the easiest mistake to make is to use = instead of == when testing for equality. When this happens you’ll get an informative error:

filter(flights, month = 1)
#> Error in `filter()`:
#> ! We detected a named input.
#> i This usually means that you've used `=` instead of `==`.
#> i Did you mean `month == 1`?

There’s another common problem you might encounter when using ==: floating point numbers. These results might surprise you!

sqrt(2) ^ 2 == 2
#> [1] FALSE
1 / 49 * 49 == 1
#> [1] FALSE

Computers use finite precision arithmetic (they obviously can’t store an infinite number of digits!) so remember that every number you see is an approximation. Instead of relying on ==, use near():

near(sqrt(2) ^ 2,  2)
#> [1] TRUE
near(1 / 49 * 49, 1)
#> [1] TRUE

5.2.2 Logical operators

Multiple arguments to filter() are combined with “and”: every expression must be true in order for a row to be included in the output. For other types of combinations, you’ll need to use Boolean operators yourself: & is “and”, | is “or”, and ! is “not”. Figure 5.1 shows the complete set of Boolean operations.

Complete set of boolean operations. `x` is the left-hand circle, `y` is the right-hand circle, and the shaded region show which parts each operator selects.

Figure 5.1: Complete set of boolean operations. x is the left-hand circle, y is the right-hand circle, and the shaded region show which parts each operator selects.

The following code finds all flights that departed in November or December:

filter(flights, month == 11 | month == 12)

The order of operations doesn’t work like English. You can’t write filter(flights, month == (11 | 12)), which you might literally translate into “finds all flights that departed in November or December”. Instead it finds all months that equal 11 | 12, an expression that evaluates to TRUE. In a numeric context (like here), TRUE becomes one, so this finds all flights in January, not November or December. This is quite confusing!

A useful short-hand for this problem is x %in% y. This will select every row where x is one of the values in y. We could use it to rewrite the code above:

nov_dec <- filter(flights, month %in% c(11, 12))

Sometimes you can simplify complicated subsetting by remembering De Morgan’s law: !(x & y) is the same as !x | !y, and !(x | y) is the same as !x & !y. For example, if you wanted to find flights that weren’t delayed (on arrival or departure) by more than two hours, you could use either of the following two filters:

filter(flights, !(arr_delay > 120 | dep_delay > 120))
filter(flights, arr_delay <= 120, dep_delay <= 120)

As well as & and |, R also has && and ||. Don’t use them here! You’ll learn when you should use them in conditional execution.

Whenever you start using complicated, multipart expressions in filter(), consider making them explicit variables instead. That makes it much easier to check your work. You’ll learn how to create new variables shortly.

5.2.3 Missing values

One important feature of R that can make comparison tricky are missing values, or NAs (“not availables”). NA represents an unknown value so missing values are “contagious”: almost any operation involving an unknown value will also be unknown.

NA > 5
#> [1] NA
10 == NA
#> [1] NA
NA + 10
#> [1] NA
NA / 2
#> [1] NA

The most confusing result is this one:

NA == NA
#> [1] NA

It’s easiest to understand why this is true with a bit more context:

# Let x be Mary's age. We don't know how old she is.
x <- NA

# Let y be John's age. We don't know how old he is.
y <- NA

# Are John and Mary the same age?
x == y
#> [1] NA
# We don't know!

If you want to determine if a value is missing, use is.na():

is.na(x)
#> [1] TRUE

filter() only includes rows where the condition is TRUE; it excludes both FALSE and NA values. If you want to preserve missing values, ask for them explicitly:

df <- tibble(x = c(1, NA, 3))
filter(df, x > 1)
#> # A tibble: 1 x 1
#>       x
#>   <dbl>
#> 1     3
filter(df, is.na(x) | x > 1)
#> # A tibble: 2 x 1
#>       x
#>   <dbl>
#> 1    NA
#> 2     3

5.2.4 Exercises

  1. If you have a dataframe named df, nrow(df) returns the number of rows in df. The author of the following code wanted to alter mpg (a dataframe built into R for demonstration purposes) so it would contain only rows where manufacturer == "audi". However, nrow(mpg) returned the same number of rows after running filter(mpg, manufacturer == "audi") that it did before running filter(...). Explain why.

    ##Check number of rows
    nrow(mpg)
    #> [1] 234
    ##Only rows where manufacturer is audi
    filter(mpg, manufacturer == "audi")
    #> # A tibble: 18 x 11
    #>   manufacturer model displ  year   cyl trans      drv     cty   hwy fl    class
    #>   <chr>        <chr> <dbl> <int> <int> <chr>      <chr> <int> <int> <chr> <chr>
    #> 1 audi         a4      1.8  1999     4 auto(l5)   f        18    29 p     compa~
    #> 2 audi         a4      1.8  1999     4 manual(m5) f        21    29 p     compa~
    #> 3 audi         a4      2    2008     4 manual(m6) f        20    31 p     compa~
    #> 4 audi         a4      2    2008     4 auto(av)   f        21    30 p     compa~
    #> 5 audi         a4      2.8  1999     6 auto(l5)   f        16    26 p     compa~
    #> 6 audi         a4      2.8  1999     6 manual(m5) f        18    26 p     compa~
    #> # ... with 12 more rows
    #> # i Use `print(n = ...)` to see more rows
    ##Check number of rows
    nrow(mpg)
    #> [1] 234
  2. Find all flights that

    1. Had an arrival delay of two or more hours
    2. Flew to Houston (IAH or HOU)
    3. Were operated by United, American, or Delta
    4. Departed in summer (July, August, and September)
    5. Arrived more than two hours late, but didn’t leave late
    6. Were delayed by at least an hour, but made up over 30 minutes in flight
    7. Departed between midnight and 6am (inclusive)
  3. Another useful dplyr filtering helper is between(). What does it do? Can you use it to simplify the code needed to answer the previous challenges?

  4. How many flights have a missing dep_time? What other variables are missing? What might these rows represent?

  5. Why is NA ^ 0 not missing? Why is NA | TRUE not missing? Why is FALSE & NA not missing? Can you figure out the general rule? (NA * 0 is a tricky counterexample!)

5.3 arrange(): Change the order of rows

arrange() works similarly to filter() except that instead of selecting rows, it changes their order. It takes a data frame and a set of column names (or more complicated expressions) to order by. If you provide more than one column name, each additional column will be used to break ties in the values of preceding columns:

arrange(flights, year, month, day)
#> # A tibble: 336,776 x 19
#>    year month   day dep_time sched_dep_time dep_delay arr_time sched_arr_time
#>   <int> <int> <int>    <int>          <int>     <dbl>    <int>          <int>
#> 1  2013     1     1      517            515         2      830            819
#> 2  2013     1     1      533            529         4      850            830
#> 3  2013     1     1      542            540         2      923            850
#> 4  2013     1     1      544            545        -1     1004           1022
#> 5  2013     1     1      554            600        -6      812            837
#> 6  2013     1     1      554            558        -4      740            728
#> # ... with 336,770 more rows, and 11 more variables: arr_delay <dbl>,
#> #   carrier <chr>, flight <int>, tailnum <chr>, origin <chr>, dest <chr>,
#> #   air_time <dbl>, distance <dbl>, hour <dbl>, minute <dbl>, time_hour <dttm>
#> # i Use `print(n = ...)` to see more rows, and `colnames()` to see all variable names

Use desc() to re-order by a column in descending order:

arrange(flights, desc(dep_delay))
#> # A tibble: 336,776 x 19
#>    year month   day dep_time sched_dep_time dep_delay arr_time sched_arr_time
#>   <int> <int> <int>    <int>          <int>     <dbl>    <int>          <int>
#> 1  2013     1     9      641            900      1301     1242           1530
#> 2  2013     6    15     1432           1935      1137     1607           2120
#> 3  2013     1    10     1121           1635      1126     1239           1810
#> 4  2013     9    20     1139           1845      1014     1457           2210
#> 5  2013     7    22      845           1600      1005     1044           1815
#> 6  2013     4    10     1100           1900       960     1342           2211
#> # ... with 336,770 more rows, and 11 more variables: arr_delay <dbl>,
#> #   carrier <chr>, flight <int>, tailnum <chr>, origin <chr>, dest <chr>,
#> #   air_time <dbl>, distance <dbl>, hour <dbl>, minute <dbl>, time_hour <dttm>
#> # i Use `print(n = ...)` to see more rows, and `colnames()` to see all variable names

Missing values are always sorted at the end:

df <- tibble(x = c(5, 2, NA))
arrange(df, x)
#> # A tibble: 3 x 1
#>       x
#>   <dbl>
#> 1     2
#> 2     5
#> 3    NA
arrange(df, desc(x))
#> # A tibble: 3 x 1
#>       x
#>   <dbl>
#> 1     5
#> 2     2
#> 3    NA

5.3.1 Exercises

  1. How could you use arrange() to sort all missing values to the start? (Hint: use is.na()).

  2. Sort flights to find the most delayed flights. Find the flights that left earliest.

  3. Sort flights to find the fastest (highest speed) flights.

  4. Which flights travelled the farthest? Which travelled the shortest?

5.4 select(), rename(), and relocate(): Operate on existing variables

It’s not uncommon to get datasets with hundreds or even thousands of variables. In this case, the first challenge is often narrowing in on the variables you’re actually interested in. select() allows you to rapidly zoom in on a useful subset using operations based on the names of the variables.

select() is not terribly useful with the flights data because we only have 19 variables, but you can still get the general idea:

# Select columns by name
select(flights, year, month, day)
#> # A tibble: 336,776 x 3
#>    year month   day
#>   <int> <int> <int>
#> 1  2013     1     1
#> 2  2013     1     1
#> 3  2013     1     1
#> 4  2013     1     1
#> 5  2013     1     1
#> 6  2013     1     1
#> # ... with 336,770 more rows
#> # i Use `print(n = ...)` to see more rows
# Select all columns between year and day (inclusive)
select(flights, year:day)
#> # A tibble: 336,776 x 3
#>    year month   day
#>   <int> <int> <int>
#> 1  2013     1     1
#> 2  2013     1     1
#> 3  2013     1     1
#> 4  2013     1     1
#> 5  2013     1     1
#> 6  2013     1     1
#> # ... with 336,770 more rows
#> # i Use `print(n = ...)` to see more rows
# Select all columns except those from year to day (inclusive)
select(flights, -(year:day))
#> # A tibble: 336,776 x 16
#>   dep_time sched_dep_time dep_delay arr_time sched_arr_time arr_delay carrier
#>      <int>          <int>     <dbl>    <int>          <int>     <dbl> <chr>
#> 1      517            515         2      830            819        11 UA
#> 2      533            529         4      850            830        20 UA
#> 3      542            540         2      923            850        33 AA
#> 4      544            545        -1     1004           1022       -18 B6
#> 5      554            600        -6      812            837       -25 DL
#> 6      554            558        -4      740            728        12 UA
#> # ... with 336,770 more rows, and 9 more variables: flight <int>,
#> #   tailnum <chr>, origin <chr>, dest <chr>, air_time <dbl>, distance <dbl>,
#> #   hour <dbl>, minute <dbl>, time_hour <dttm>
#> # i Use `print(n = ...)` to see more rows, and `colnames()` to see all variable names

There are a number of helper functions you can use within select():

  • starts_with("abc"): matches names that begin with “abc”.

  • ends_with("xyz"): matches names that end with “xyz”.

  • contains("ijk"): matches names that contain “ijk”.

  • matches("(.)\\1"): selects variables that match a regular expression. This one matches any variables that contain repeated characters. You’ll learn more about regular expressions in strings.

  • num_range("x", 1:3): matches x1, x2 and x3.

See ?select for more details.

select() can be used to rename variables, but this functionality is rarely useful because it drops all of the variables not explicitly mentioned. Instead, use rename(), which is a variant of select() that keeps all the variables that aren’t explicitly mentioned:

rename(flights, tail_num = tailnum)
#> # A tibble: 336,776 x 19
#>    year month   day dep_time sched_dep_time dep_delay arr_time sched_arr_time
#>   <int> <int> <int>    <int>          <int>     <dbl>    <int>          <int>
#> 1  2013     1     1      517            515         2      830            819
#> 2  2013     1     1      533            529         4      850            830
#> 3  2013     1     1      542            540         2      923            850
#> 4  2013     1     1      544            545        -1     1004           1022
#> 5  2013     1     1      554            600        -6      812            837
#> 6  2013     1     1      554            558        -4      740            728
#> # ... with 336,770 more rows, and 11 more variables: arr_delay <dbl>,
#> #   carrier <chr>, flight <int>, tail_num <chr>, origin <chr>, dest <chr>,
#> #   air_time <dbl>, distance <dbl>, hour <dbl>, minute <dbl>, time_hour <dttm>
#> # i Use `print(n = ...)` to see more rows, and `colnames()` to see all variable names

Another option is to use relocate(), which moves variables elsewhere in the data frame:

##Move time_hour & air_time after month
relocate(flights, time_hour, air_time, .after=month)
#> # A tibble: 336,776 x 19
#>    year month time_hour           air_time   day dep_time sched_dep_time
#>   <int> <int> <dttm>                 <dbl> <int>    <int>          <int>
#> 1  2013     1 2013-01-01 05:00:00      227     1      517            515
#> 2  2013     1 2013-01-01 05:00:00      227     1      533            529
#> 3  2013     1 2013-01-01 05:00:00      160     1      542            540
#> 4  2013     1 2013-01-01 05:00:00      183     1      544            545
#> 5  2013     1 2013-01-01 06:00:00      116     1      554            600
#> 6  2013     1 2013-01-01 05:00:00      150     1      554            558
#> # ... with 336,770 more rows, and 12 more variables: dep_delay <dbl>,
#> #   arr_time <int>, sched_arr_time <int>, arr_delay <dbl>, carrier <chr>,
#> #   flight <int>, tailnum <chr>, origin <chr>, dest <chr>, distance <dbl>,
#> #   hour <dbl>, minute <dbl>
#> # i Use `print(n = ...)` to see more rows, and `colnames()` to see all variable names
##Move time_hour & air_time to the left of the data frame (before the current 1st column)
relocate(flights, time_hour, air_time, .before=1)
#> # A tibble: 336,776 x 19
#>   time_hour           air_time  year month   day dep_time sched_dep_time
#>   <dttm>                 <dbl> <int> <int> <int>    <int>          <int>
#> 1 2013-01-01 05:00:00      227  2013     1     1      517            515
#> 2 2013-01-01 05:00:00      227  2013     1     1      533            529
#> 3 2013-01-01 05:00:00      160  2013     1     1      542            540
#> 4 2013-01-01 05:00:00      183  2013     1     1      544            545
#> 5 2013-01-01 06:00:00      116  2013     1     1      554            600
#> 6 2013-01-01 05:00:00      150  2013     1     1      554            558
#> # ... with 336,770 more rows, and 12 more variables: dep_delay <dbl>,
#> #   arr_time <int>, sched_arr_time <int>, arr_delay <dbl>, carrier <chr>,
#> #   flight <int>, tailnum <chr>, origin <chr>, dest <chr>, distance <dbl>,
#> #   hour <dbl>, minute <dbl>
#> # i Use `print(n = ...)` to see more rows, and `colnames()` to see all variable names

5.4.1 Exercises

  1. Brainstorm as many ways as possible to select dep_time, dep_delay, arr_time, and arr_delay from flights.

  2. What happens if you include the name of a variable multiple times in a select() call?

  3. What does the any_of() function do? Why might it be helpful in conjunction with this vector?

    vars <- c("year", "month", "day", "dep_delay", "arr_delay")
  4. Does the result of running the following code surprise you? How do the select helpers deal with case by default? How can you change that default?

    select(flights, contains("TIME"))

5.5 mutate() and transmute(): Add new variables or change existing variables

Besides selecting sets of existing columns, it’s often useful to add new columns that are functions of existing columns. That’s the job of mutate().

By default, mutate() adds new columns at the end of your dataset so we’ll start by creating a narrower dataset so we can see the new variables. Remember that when you’re in RStudio, the easiest way to see all the columns is View().

flights_sml <- select(flights,
  year:day,
  ends_with("delay"),
  distance,
  air_time
)
mutate(flights_sml,
  gain = dep_delay - arr_delay,
  speed = distance / air_time * 60
)
#> # A tibble: 336,776 x 9
#>    year month   day dep_delay arr_delay distance air_time  gain speed
#>   <int> <int> <int>     <dbl>     <dbl>    <dbl>    <dbl> <dbl> <dbl>
#> 1  2013     1     1         2        11     1400      227    -9  370.
#> 2  2013     1     1         4        20     1416      227   -16  374.
#> 3  2013     1     1         2        33     1089      160   -31  408.
#> 4  2013     1     1        -1       -18     1576      183    17  517.
#> 5  2013     1     1        -6       -25      762      116    19  394.
#> 6  2013     1     1        -4        12      719      150   -16  288.
#> # ... with 336,770 more rows
#> # i Use `print(n = ...)` to see more rows

Note that you can refer to columns that you’ve just created:

mutate(flights_sml,
  gain = dep_delay - arr_delay,
  hours = air_time / 60,
  gain_per_hour = gain / hours
)
#> # A tibble: 336,776 x 10
#>    year month   day dep_delay arr_delay distance air_time  gain hours
#>   <int> <int> <int>     <dbl>     <dbl>    <dbl>    <dbl> <dbl> <dbl>
#> 1  2013     1     1         2        11     1400      227    -9  3.78
#> 2  2013     1     1         4        20     1416      227   -16  3.78
#> 3  2013     1     1         2        33     1089      160   -31  2.67
#> 4  2013     1     1        -1       -18     1576      183    17  3.05
#> 5  2013     1     1        -6       -25      762      116    19  1.93
#> 6  2013     1     1        -4        12      719      150   -16  2.5
#> # ... with 336,770 more rows, and 1 more variable: gain_per_hour <dbl>
#> # i Use `print(n = ...)` to see more rows, and `colnames()` to see all variable names

If you only want to keep the new variables, use transmute():

transmute(flights,
  gain = dep_delay - arr_delay,
  hours = air_time / 60,
  gain_per_hour = gain / hours
)
#> # A tibble: 336,776 x 3
#>    gain hours gain_per_hour
#>   <dbl> <dbl>         <dbl>
#> 1    -9  3.78         -2.38
#> 2   -16  3.78         -4.23
#> 3   -31  2.67        -11.6
#> 4    17  3.05          5.57
#> 5    19  1.93          9.83
#> 6   -16  2.5          -6.4
#> # ... with 336,770 more rows
#> # i Use `print(n = ...)` to see more rows

In addition to adding new variables, mutate() and transmute() can also change existing variables. For example, you can convert distance from miles to kilometers:

mutate(flights_sml,
       ##1.609344 km in a mile
       distance = 1.609344 * distance)
#> # A tibble: 336,776 x 7
#>    year month   day dep_delay arr_delay distance air_time
#>   <int> <int> <int>     <dbl>     <dbl>    <dbl>    <dbl>
#> 1  2013     1     1         2        11    2253.      227
#> 2  2013     1     1         4        20    2279.      227
#> 3  2013     1     1         2        33    1753.      160
#> 4  2013     1     1        -1       -18    2536.      183
#> 5  2013     1     1        -6       -25    1226.      116
#> 6  2013     1     1        -4        12    1157.      150
#> # ... with 336,770 more rows
#> # i Use `print(n = ...)` to see more rows

Note that when mutate() changes existing variables, it keeps the changed variable in place (as opposed to new variables, which go at the end of the dataset)

5.5.1 Useful creation functions

There are many functions for creating new variables that you can use with mutate(). The key property is that the function must be vectorised: it must take a vector of values as input, return a vector with the same number of values as output. There’s no way to list every possible function that you might use, but here’s a selection of functions that are frequently useful:

  • Arithmetic operators: +, -, *, /, ^. These are all vectorised, using the so called “recycling rules”. If one parameter is shorter than the other, it will be automatically extended to be the same length. This is most useful when one of the arguments is a single number: air_time / 60, hours * 60 + minute, etc.

    Arithmetic operators are also useful in conjunction with the aggregate functions you’ll learn about later. For example, x / sum(x) calculates the proportion of a total, and y - mean(y) computes the difference from the mean.

  • Modular arithmetic: %/% (integer division) and %% (remainder), where x == y * (x %/% y) + (x %% y). Modular arithmetic is a handy tool because it allows you to break integers up into pieces. For example, in the flights dataset, you can compute hour and minute from dep_time with:

    transmute(flights,
      dep_time,
      hour = dep_time %/% 100,
      minute = dep_time %% 100
    )
    #> # A tibble: 336,776 x 3
    #>   dep_time  hour minute
    #>      <int> <dbl>  <dbl>
    #> 1      517     5     17
    #> 2      533     5     33
    #> 3      542     5     42
    #> 4      544     5     44
    #> 5      554     5     54
    #> 6      554     5     54
    #> # ... with 336,770 more rows
    #> # i Use `print(n = ...)` to see more rows
  • Logs: log(), log2(), log10(). Logarithms are an incredibly useful transformation for dealing with data that ranges across multiple orders of magnitude. They also convert multiplicative relationships to additive, a feature we’ll come back to in modelling.

    All else being equal, I recommend using log2() because it’s easy to interpret: a difference of 1 on the log scale corresponds to doubling on the original scale and a difference of -1 corresponds to halving.

  • Offsets: lead() and lag() allow you to refer to leading or lagging values. This allows you to compute running differences (e.g. x - lag(x)) or find when values change (x != lag(x)). They are most useful in conjunction with group_by(), which you’ll learn about shortly.

    (x <- 1:10)
    #>  [1]  1  2  3  4  5  6  7  8  9 10
    lag(x)
    #>  [1] NA  1  2  3  4  5  6  7  8  9
    lead(x)
    #>  [1]  2  3  4  5  6  7  8  9 10 NA
  • Cumulative and rolling aggregates: R provides functions for running sums, products, mins and maxes: cumsum(), cumprod(), cummin(), cummax(); and dplyr provides cummean() for cumulative means. If you need rolling aggregates (i.e. a sum computed over a rolling window), try the RcppRoll package.

    x
    #>  [1]  1  2  3  4  5  6  7  8  9 10
    cumsum(x)
    #>  [1]  1  3  6 10 15 21 28 36 45 55
    cummean(x)
    #>  [1] 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5
  • Logical comparisons, <, <=, >, >=, !=, and ==, which you learned about earlier. If you’re doing a complex sequence of logical operations it’s often a good idea to store the interim values in new variables so you can check that each step is working as expected.

  • Ranking: there are a number of ranking functions, but you should start with min_rank(). It does the most usual type of ranking (e.g. 1st, 2nd, 2nd, 4th). The default gives smallest values the small ranks; use desc(x) to give the largest values the smallest ranks.

    y <- c(1, 2, 2, NA, 3, 4)
    min_rank(y)
    #> [1]  1  2  2 NA  4  5
    min_rank(desc(y))
    #> [1]  5  3  3 NA  2  1

    If min_rank() doesn’t do what you need, look at the variants row_number(), dense_rank(), percent_rank(), cume_dist(), ntile(). See their help pages for more details.

    row_number(y)
    #> [1]  1  2  3 NA  4  5
    dense_rank(y)
    #> [1]  1  2  2 NA  3  4
    percent_rank(y)
    #> [1] 0.00 0.25 0.25   NA 0.75 1.00
    cume_dist(y)
    #> [1] 0.2 0.6 0.6  NA 0.8 1.0

5.5.2 Exercises

  1. Currently dep_time and sched_dep_time are convenient to look at, but hard to compute with because they’re not really continuous numbers. Convert them to a more convenient representation of number of minutes since midnight.

  2. Compare air_time with arr_time - dep_time. What do you expect to see? What do you see? What do you need to do to fix it?

  3. Compare dep_time, sched_dep_time, and dep_delay. How would you expect those three numbers to be related?

  4. Find the 10 most delayed flights using a ranking function. How do you want to handle ties? Carefully read the documentation for min_rank().

  5. What does 1:3 + 1:10 return? Why?

  6. What trigonometric functions does R provide?

5.6 summarise(), group_by(), and ungroup(): Collapse the data frame to a row per group

The last key verb is summarise(). It collapses a data frame to a single row:

summarise(flights, delay = mean(dep_delay, na.rm = TRUE))
#> # A tibble: 1 x 1
#>   delay
#>   <dbl>
#> 1  12.6

(We’ll come back to what that na.rm = TRUE means very shortly.)

summarise() is not terribly useful unless we pair it with group_by(). This changes the unit of analysis from the complete dataset to individual groups. Then, when you use the dplyr verbs on a grouped data frame they’ll be automatically applied “by group”. For example, if we applied exactly the same code to a data frame grouped by date, we get the average delay per date:

by_day <- group_by(flights, year, month, day)
summarise(by_day, delay = mean(dep_delay, na.rm = TRUE))
#> `summarise()` has grouped output by 'year', 'month'. You can override using the
#> `.groups` argument.
#> # A tibble: 365 x 4
#> # Groups:   year, month [12]
#>    year month   day delay
#>   <int> <int> <int> <dbl>
#> 1  2013     1     1 11.5
#> 2  2013     1     2 13.9
#> 3  2013     1     3 11.0
#> 4  2013     1     4  8.95
#> 5  2013     1     5  5.73
#> 6  2013     1     6  7.15
#> # ... with 359 more rows
#> # i Use `print(n = ...)` to see more rows

You might’ve noticed the message summarise() has grouped output by 'year', 'month'. You can override using the .groups argument. Since summarise() is typically used with groups, it has special ways to handle data with multiple groups; for more details, see ?summarise under the “Arguments” heading. If the message annoys you, add the argument .groups = "drop_last" to summarise()

Together group_by() and summarise() provide one of the tools that you’ll use most commonly when working with dplyr: grouped summaries. But before we go any further with this, we need to introduce a powerful new idea: the pipe.

5.6.1 Combining multiple operations with the pipe

Imagine that we want to explore the relationship between the distance and average delay for each location. Using what you know about dplyr, you might write code like this:

by_dest <- group_by(flights, dest)
delay <- summarise(by_dest,
  count = n(),
  dist = mean(distance, na.rm = TRUE),
  delay = mean(arr_delay, na.rm = TRUE)
)
delay <- filter(delay, count > 20, dest != "HNL")

# It looks like delays increase with distance up to ~750 miles
# and then decrease. Maybe as flights get longer there's more
# ability to make up delays in the air?
ggplot(data = delay, mapping = aes(x = dist, y = delay)) +
  geom_point(aes(size = count), alpha = 1/3) +
  geom_smooth(se = FALSE)
#> `geom_smooth()` using method = 'loess' and formula 'y ~ x'

There are three steps to prepare this data:

  1. Group flights by destination.

  2. Summarise to compute distance, average delay, and number of flights.

  3. Filter to remove noisy points and Honolulu airport, which is almost twice as far away as the next closest airport.

This code is a little frustrating to write because we have to give each intermediate data frame a name, even though we don’t care about it. Naming things is hard, so this slows down our analysis.

There’s another way to tackle the same problem with the pipe, %>%:

delays <- flights %>%
  group_by(dest) %>%
  summarise(
    count = n(),
    dist = mean(distance, na.rm = TRUE),
    delay = mean(arr_delay, na.rm = TRUE)
  ) %>%
  filter(count > 20, dest != "HNL")

This focuses on the transformations, not what’s being transformed, which makes the code easier to read. You can read it as a series of imperative statements: group, then summarise, then filter. As suggested by this reading, a good way to pronounce %>% when reading code is “then”.

Behind the scenes, x %>% f(y) turns into f(x, y), and x %>% f(y) %>% g(z) turns into g(f(x, y), z) and so on. You can use the pipe to rewrite multiple operations in a way that you can read left-to-right, top-to-bottom. We’ll use piping frequently from now on because it considerably improves the readability of code, and we’ll come back to it in more detail in pipes.

The %>% pipe is awkward to type, so there’s a shortcut for it in RStudio: Ctrl+Shift+M (Windows) or Cmd+Shift+M (Mac). Being comfortable with keyboard shortcuts is an important part of programming!

Working with the pipe is one of the key criteria for belonging to the tidyverse. The only exception is ggplot2: it was written before the pipe was discovered. Unfortunately, the next iteration of ggplot2, ggvis, which does use the pipe, isn’t quite ready for prime time yet.

The %>% pipe is not part of base R. It was introduced by the magrittr package—the name is a reference to René Magritte’s painting The Treachery of Images. The pipe has since been adopted by all the tidyverse packages, so when you load library(tidyverse), the %>% pipe is automatically loaded too.
As of R version 4.1, base R also now has a ‘native’ pipe operator |>, which works slightly differently than the %>% pipe. We’ll be working with the %>% pipe because the base R pipe is fairly new and the %>% pipe is so established; however, you should be aware of the |> pipe when you’re googling pipes in R.

5.6.2 Missing values

You may have wondered about the na.rm argument we used above. What happens if we don’t set it?

flights %>%
  group_by(year, month, day) %>%
  summarise(mean = mean(dep_delay))
#> `summarise()` has grouped output by 'year', 'month'. You can override using the
#> `.groups` argument.
#> # A tibble: 365 x 4
#> # Groups:   year, month [12]
#>    year month   day  mean
#>   <int> <int> <int> <dbl>
#> 1  2013     1     1    NA
#> 2  2013     1     2    NA
#> 3  2013     1     3    NA
#> 4  2013     1     4    NA
#> 5  2013     1     5    NA
#> 6  2013     1     6    NA
#> # ... with 359 more rows
#> # i Use `print(n = ...)` to see more rows

We get a lot of missing values! That’s because aggregation functions obey the usual rule of missing values: if there’s any missing value in the input, the output will be a missing value. Fortunately, all aggregation functions have an na.rm argument which removes the missing values prior to computation:

flights %>%
  group_by(year, month, day) %>%
  summarise(mean = mean(dep_delay, na.rm = TRUE))
#> `summarise()` has grouped output by 'year', 'month'. You can override using the
#> `.groups` argument.
#> # A tibble: 365 x 4
#> # Groups:   year, month [12]
#>    year month   day  mean
#>   <int> <int> <int> <dbl>
#> 1  2013     1     1 11.5
#> 2  2013     1     2 13.9
#> 3  2013     1     3 11.0
#> 4  2013     1     4  8.95
#> 5  2013     1     5  5.73
#> 6  2013     1     6  7.15
#> # ... with 359 more rows
#> # i Use `print(n = ...)` to see more rows

In this case, where missing values represent cancelled flights, we could also tackle the problem by first removing the cancelled flights. We’ll save this dataset so we can reuse it in the next few examples.

not_cancelled <- flights %>%
  filter(!is.na(dep_delay), !is.na(arr_delay))

not_cancelled %>%
  group_by(year, month, day) %>%
  summarise(mean = mean(dep_delay))
#> `summarise()` has grouped output by 'year', 'month'. You can override using the
#> `.groups` argument.
#> # A tibble: 365 x 4
#> # Groups:   year, month [12]
#>    year month   day  mean
#>   <int> <int> <int> <dbl>
#> 1  2013     1     1 11.4
#> 2  2013     1     2 13.7
#> 3  2013     1     3 10.9
#> 4  2013     1     4  8.97
#> 5  2013     1     5  5.73
#> 6  2013     1     6  7.15
#> # ... with 359 more rows
#> # i Use `print(n = ...)` to see more rows

5.6.3 Counts

Whenever you do any aggregation, it’s always a good idea to include either a count (n()), or a count of non-missing values (sum(!is.na(x))). That way you can check that you’re not drawing conclusions based on very small amounts of data. For example, let’s look at the planes (identified by their tail number) that have the highest average delays:

delays <- not_cancelled %>%
  group_by(tailnum) %>%
  summarise(
    delay = mean(arr_delay)
  )

ggplot(data = delays, mapping = aes(x = delay)) +
  geom_freqpoly(binwidth = 10)

Wow, there are some planes that have an average delay of 5 hours (300 minutes)!

The story is actually a little more nuanced. We can get more insight if we draw a scatterplot of number of flights vs. average delay:

delays <- not_cancelled %>%
  group_by(tailnum) %>%
  summarise(
    delay = mean(arr_delay, na.rm = TRUE),
    n = n()
  )

ggplot(data = delays, mapping = aes(x = n, y = delay)) +
  geom_point(alpha = 1/10)

Not surprisingly, there is much greater variation in the average delay when there are few flights. The shape of this plot is very characteristic: whenever you plot a mean (or other summary) vs. group size, you’ll see that the variation decreases as the sample size increases.

When looking at this sort of plot, it’s often useful to filter out the groups with the smallest numbers of observations, so you can see more of the pattern and less of the extreme variation in the smallest groups. This is what the following code does, as well as showing you a handy pattern for integrating ggplot2 into dplyr flows. It’s a bit painful that you have to switch from %>% to +, but once you get the hang of it, it’s quite convenient.

delays %>%
  filter(n > 25) %>%
  ggplot(mapping = aes(x = n, y = delay)) +
    geom_point(alpha = 1/10)

RStudio tip: a useful keyboard shortcut is Cmd/Ctrl + Shift + P. This resends the previously sent chunk from the editor to the console. This is very convenient when you’re (e.g.) exploring the value of n in the example above. You send the whole block once with Cmd/Ctrl + Enter, then you modify the value of n and press Cmd/Ctrl + Shift + P to resend the complete block.


There’s another common variation of this type of pattern. Let’s look at how the average performance of batters in baseball is related to the number of times they’re at bat. Here I use data from the Lahman package to compute the batting average (number of hits / number of attempts) of every major league baseball player.

When I plot the skill of the batter (measured by the batting average, ba) against the number of opportunities to hit the ball (measured by at bat, ab), you see two patterns:

  1. As above, the variation in our aggregate decreases as we get more data points.

  2. There’s a positive correlation between skill (ba) and opportunities to hit the ball (ab). This is because teams control who gets to play, and obviously they’ll pick their best players.

# Convert to a tibble so it prints nicely
batting <- as_tibble(Lahman::Batting)

batters <- batting %>%
  group_by(playerID) %>%
  summarise(
    ba = sum(H, na.rm = TRUE) / sum(AB, na.rm = TRUE),
    ab = sum(AB, na.rm = TRUE)
  )

batters %>%
  filter(ab > 100) %>%
  ggplot(mapping = aes(x = ab, y = ba)) +
    geom_point() +
    geom_smooth(se = FALSE)
#> `geom_smooth()` using method = 'gam' and formula 'y ~ s(x, bs = "cs")'

This also has important implications for ranking. If you naively sort on desc(ba), the people with the best batting averages are clearly lucky, not skilled:

batters %>%
  arrange(desc(ba))
#> # A tibble: 20,166 x 3
#>   playerID     ba    ab
#>   <chr>     <dbl> <int>
#> 1 abramge01     1     1
#> 2 alberan01     1     1
#> 3 banisje01     1     1
#> 4 bartocl01     1     1
#> 5 bassdo01      1     1
#> 6 birasst01     1     2
#> # ... with 20,160 more rows
#> # i Use `print(n = ...)` to see more rows

You can find a good explanation of this problem at http://varianceexplained.org/r/empirical_bayes_baseball/ and http://www.evanmiller.org/how-not-to-sort-by-average-rating.html.

5.6.4 Useful summary functions

Just using means, counts, and sum can get you a long way, but R provides many other useful summary functions:

  • Measures of location: we’ve used mean(x), but median(x) is also useful. The mean is the sum divided by the length; the median is a value where 50% of x is above it, and 50% is below it.

    It’s sometimes useful to combine aggregation with logical subsetting. We haven’t talked about this sort of subsetting yet, but you’ll learn more about it in subsetting.

    not_cancelled %>%
      group_by(year, month, day) %>%
      summarise(
        avg_delay1 = mean(arr_delay),
        avg_delay2 = mean(arr_delay[arr_delay > 0]) # the average positive delay
      )
    #> `summarise()` has grouped output by 'year', 'month'. You can override using the
    #> `.groups` argument.
    #> # A tibble: 365 x 5
    #> # Groups:   year, month [12]
    #>    year month   day avg_delay1 avg_delay2
    #>   <int> <int> <int>      <dbl>      <dbl>
    #> 1  2013     1     1      12.7        32.5
    #> 2  2013     1     2      12.7        32.0
    #> 3  2013     1     3       5.73       27.7
    #> 4  2013     1     4      -1.93       28.3
    #> 5  2013     1     5      -1.53       22.6
    #> 6  2013     1     6       4.24       24.4
    #> # ... with 359 more rows
    #> # i Use `print(n = ...)` to see more rows
  • Measures of spread: sd(x), IQR(x), mad(x). The root mean squared deviation, or standard deviation sd(x), is the standard measure of spread. The interquartile range IQR(x) and median absolute deviation mad(x) are robust equivalents that may be more useful if you have outliers.

    # Why is distance to some destinations more variable than to others?
    not_cancelled %>%
      group_by(dest) %>%
      summarise(distance_sd = sd(distance)) %>%
      arrange(desc(distance_sd))
    #> # A tibble: 104 x 2
    #>   dest  distance_sd
    #>   <chr>       <dbl>
    #> 1 EGE         10.5
    #> 2 SAN         10.4
    #> 3 SFO         10.2
    #> 4 HNL         10.0
    #> 5 SEA          9.98
    #> 6 LAS          9.91
    #> # ... with 98 more rows
    #> # i Use `print(n = ...)` to see more rows
  • Measures of rank: min(x), quantile(x, 0.25), max(x). Quantiles are a generalisation of the median. For example, quantile(x, 0.25) will find a value of x that is greater than 25% of the values, and less than the remaining 75%.

    # When do the first and last flights leave each day?
    not_cancelled %>%
      group_by(year, month, day) %>%
      summarise(
        first = min(dep_time),
        last = max(dep_time)
      )
    #> `summarise()` has grouped output by 'year', 'month'. You can override using the
    #> `.groups` argument.
    #> # A tibble: 365 x 5
    #> # Groups:   year, month [12]
    #>    year month   day first  last
    #>   <int> <int> <int> <int> <int>
    #> 1  2013     1     1   517  2356
    #> 2  2013     1     2    42  2354
    #> 3  2013     1     3    32  2349
    #> 4  2013     1     4    25  2358
    #> 5  2013     1     5    14  2357
    #> 6  2013     1     6    16  2355
    #> # ... with 359 more rows
    #> # i Use `print(n = ...)` to see more rows
  • Measures of position: first(x), nth(x, 2), last(x). These work similarly to x[1], x[2], and x[length(x)] but let you set a default value if that position does not exist (i.e. you’re trying to get the 3rd element from a group that only has two elements). For example, we can find the first and last departure for each day:

    not_cancelled %>%
      group_by(year, month, day) %>%
      summarise(
        first_dep = first(dep_time),
        last_dep = last(dep_time)
      )
    #> `summarise()` has grouped output by 'year', 'month'. You can override using the
    #> `.groups` argument.
    #> # A tibble: 365 x 5
    #> # Groups:   year, month [12]
    #>    year month   day first_dep last_dep
    #>   <int> <int> <int>     <int>    <int>
    #> 1  2013     1     1       517     2356
    #> 2  2013     1     2        42     2354
    #> 3  2013     1     3        32     2349
    #> 4  2013     1     4        25     2358
    #> 5  2013     1     5        14     2357
    #> 6  2013     1     6        16     2355
    #> # ... with 359 more rows
    #> # i Use `print(n = ...)` to see more rows

    These functions are complementary to filtering on ranks. Filtering gives you all variables, with each observation in a separate row:

    not_cancelled %>%
      group_by(year, month, day) %>%
      mutate(r = min_rank(desc(dep_time))) %>%
      filter(r %in% range(r))
    #> # A tibble: 770 x 20
    #> # Groups:   year, month, day [365]
    #>    year month   day dep_time sched_dep_time dep_delay arr_time sched_arr_time
    #>   <int> <int> <int>    <int>          <int>     <dbl>    <int>          <int>
    #> 1  2013     1     1      517            515         2      830            819
    #> 2  2013     1     1     2356           2359        -3      425            437
    #> 3  2013     1     2       42           2359        43      518            442
    #> 4  2013     1     2     2354           2359        -5      413            437
    #> 5  2013     1     3       32           2359        33      504            442
    #> 6  2013     1     3     2349           2359       -10      434            445
    #> # ... with 764 more rows, and 12 more variables: arr_delay <dbl>,
    #> #   carrier <chr>, flight <int>, tailnum <chr>, origin <chr>, dest <chr>,
    #> #   air_time <dbl>, distance <dbl>, hour <dbl>, minute <dbl>, time_hour <dttm>,
    #> #   r <int>
    #> # i Use `print(n = ...)` to see more rows, and `colnames()` to see all variable names
  • Counts: You’ve seen n(), which takes no arguments, and returns the size of the current group. To count the number of non-missing values, use sum(!is.na(x)). To count the number of distinct (unique) values, use n_distinct(x).

    # Which destinations have the most carriers?
    not_cancelled %>%
      group_by(dest) %>%
      summarise(carriers = n_distinct(carrier)) %>%
      arrange(desc(carriers))
    #> # A tibble: 104 x 2
    #>   dest  carriers
    #>   <chr>    <int>
    #> 1 ATL          7
    #> 2 BOS          7
    #> 3 CLT          7
    #> 4 ORD          7
    #> 5 TPA          7
    #> 6 AUS          6
    #> # ... with 98 more rows
    #> # i Use `print(n = ...)` to see more rows

    Counts are so useful that dplyr provides a simple helper if all you want is a count:

    not_cancelled %>%
      count(dest)
    #> # A tibble: 104 x 2
    #>   dest      n
    #>   <chr> <int>
    #> 1 ABQ     254
    #> 2 ACK     264
    #> 3 ALB     418
    #> 4 ANC       8
    #> 5 ATL   16837
    #> 6 AUS    2411
    #> # ... with 98 more rows
    #> # i Use `print(n = ...)` to see more rows

    You can optionally provide a weight variable. For example, you could use this to “count” (sum) the total number of miles a plane flew:

    not_cancelled %>%
      count(tailnum, wt = distance)
    #> # A tibble: 4,037 x 2
    #>   tailnum      n
    #>   <chr>    <dbl>
    #> 1 D942DN    3418
    #> 2 N0EGMQ  239143
    #> 3 N10156  109664
    #> 4 N102UW   25722
    #> 5 N103US   24619
    #> 6 N104UW   24616
    #> # ... with 4,031 more rows
    #> # i Use `print(n = ...)` to see more rows
  • Counts and proportions of logical values: sum(x > 10), mean(y == 0). When used with numeric functions, TRUE is converted to 1 and FALSE to 0. This makes sum() and mean() very useful: sum(x) gives the number of TRUEs in x, and mean(x) gives the proportion.

    # How many flights left before 5am? (these usually indicate delayed
    # flights from the previous day)
    not_cancelled %>%
      group_by(year, month, day) %>%
      summarise(n_early = sum(dep_time < 500))
    #> `summarise()` has grouped output by 'year', 'month'. You can override using the
    #> `.groups` argument.
    #> # A tibble: 365 x 4
    #> # Groups:   year, month [12]
    #>    year month   day n_early
    #>   <int> <int> <int>   <int>
    #> 1  2013     1     1       0
    #> 2  2013     1     2       3
    #> 3  2013     1     3       4
    #> 4  2013     1     4       3
    #> 5  2013     1     5       3
    #> 6  2013     1     6       2
    #> # ... with 359 more rows
    #> # i Use `print(n = ...)` to see more rows

    # What proportion of flights are delayed by more than an hour?
    not_cancelled %>%
      group_by(year, month, day) %>%
      summarise(hour_prop = mean(arr_delay > 60))
    #> `summarise()` has grouped output by 'year', 'month'. You can override using the
    #> `.groups` argument.
    #> # A tibble: 365 x 4
    #> # Groups:   year, month [12]
    #>    year month   day hour_prop
    #>   <int> <int> <int>     <dbl>
    #> 1  2013     1     1    0.0722
    #> 2  2013     1     2    0.0851
    #> 3  2013     1     3    0.0567
    #> 4  2013     1     4    0.0396
    #> 5  2013     1     5    0.0349
    #> 6  2013     1     6    0.0470
    #> # ... with 359 more rows
    #> # i Use `print(n = ...)` to see more rows

5.6.5 Grouping by multiple variables

When you group by multiple variables, each summary peels off one level of the grouping. That makes it easy to progressively roll up a dataset:

daily <- group_by(flights, year, month, day)
(per_day   <- summarise(daily, flights = n()))
#> `summarise()` has grouped output by 'year', 'month'. You can override using the
#> `.groups` argument.
#> # A tibble: 365 x 4
#> # Groups:   year, month [12]
#>    year month   day flights
#>   <int> <int> <int>   <int>
#> 1  2013     1     1     842
#> 2  2013     1     2     943
#> 3  2013     1     3     914
#> 4  2013     1     4     915
#> 5  2013     1     5     720
#> 6  2013     1     6     832
#> # ... with 359 more rows
#> # i Use `print(n = ...)` to see more rows
(per_month <- summarise(per_day, flights = sum(flights)))
#> `summarise()` has grouped output by 'year'. You can override using the
#> `.groups` argument.
#> # A tibble: 12 x 3
#> # Groups:   year [1]
#>    year month flights
#>   <int> <int>   <int>
#> 1  2013     1   27004
#> 2  2013     2   24951
#> 3  2013     3   28834
#> 4  2013     4   28330
#> 5  2013     5   28796
#> 6  2013     6   28243
#> # ... with 6 more rows
#> # i Use `print(n = ...)` to see more rows
(per_year  <- summarise(per_month, flights = sum(flights)))
#> # A tibble: 1 x 2
#>    year flights
#>   <int>   <int>
#> 1  2013  336776

By default, summarise() uses .groups = "drop_last", which peels off one level of the grouping. This isn’t true if you use a different setting for .groups, though.

Be careful when progressively rolling up summaries: it’s OK for sums and counts, but you need to think about weighting means and variances, and it’s not possible to do it exactly for rank-based statistics like the median. In other words, the sum of groupwise sums is the overall sum, but the median of groupwise medians is not the overall median.

5.6.6 Ungrouping

If you need to remove grouping, and return to operations on ungrouped data, use ungroup().

daily %>%
  ungroup() %>%             # no longer grouped by date
  summarise(flights = n())  # all flights
#> # A tibble: 1 x 1
#>   flights
#>     <int>
#> 1  336776

5.6.7 Exercises

  1. Brainstorm at least 5 different ways to assess the typical delay characteristics of a group of flights. Consider the following scenarios:

    • A flight is 15 minutes early 50% of the time, and 15 minutes late 50% of the time.

    • A flight is always 10 minutes late.

    • A flight is 30 minutes early 50% of the time, and 30 minutes late 50% of the time.

    • 99% of the time a flight is on time. 1% of the time it’s 2 hours late.

    Which is more important: arrival delay or departure delay?

  2. Come up with another approach that will give you the same output as not_cancelled %>% count(dest) and not_cancelled %>% count(tailnum, wt = distance) (without using count()).

  3. Our definition of cancelled flights (is.na(dep_delay) | is.na(arr_delay) ) is slightly suboptimal. Why? Which is the most important column?

  4. Look at the number of cancelled flights per day. Is there a pattern? Is the proportion of cancelled flights related to the average delay?

  5. Which carrier has the worst delays? Challenge: can you disentangle the effects of bad airports vs. bad carriers? Why/why not? (Hint: think about flights %>% group_by(carrier, dest) %>% summarise(n()))

  6. What does the sort argument to count() do. When might you use it?

5.7 Grouped mutates (and filters)

Grouping is most useful in conjunction with summarise(), but you can also do convenient operations with mutate() and filter():

  • Find the worst members of each group:

    flights_sml %>%
      group_by(year, month, day) %>%
      filter(rank(desc(arr_delay)) < 10)
    #> # A tibble: 3,306 x 7
    #> # Groups:   year, month, day [365]
    #>    year month   day dep_delay arr_delay distance air_time
    #>   <int> <int> <int>     <dbl>     <dbl>    <dbl>    <dbl>
    #> 1  2013     1     1       853       851      184       41
    #> 2  2013     1     1       290       338     1134      213
    #> 3  2013     1     1       260       263      266       46
    #> 4  2013     1     1       157       174      213       60
    #> 5  2013     1     1       216       222      708      121
    #> 6  2013     1     1       255       250      589      115
    #> # ... with 3,300 more rows
    #> # i Use `print(n = ...)` to see more rows
  • Find all groups bigger than a threshold:

    popular_dests <- flights %>%
      group_by(dest) %>%
      filter(n() > 365)
    popular_dests
    #> # A tibble: 332,577 x 19
    #> # Groups:   dest [77]
    #>    year month   day dep_time sched_dep_time dep_delay arr_time sched_arr_time
    #>   <int> <int> <int>    <int>          <int>     <dbl>    <int>          <int>
    #> 1  2013     1     1      517            515         2      830            819
    #> 2  2013     1     1      533            529         4      850            830
    #> 3  2013     1     1      542            540         2      923            850
    #> 4  2013     1     1      544            545        -1     1004           1022
    #> 5  2013     1     1      554            600        -6      812            837
    #> 6  2013     1     1      554            558        -4      740            728
    #> # ... with 332,571 more rows, and 11 more variables: arr_delay <dbl>,
    #> #   carrier <chr>, flight <int>, tailnum <chr>, origin <chr>, dest <chr>,
    #> #   air_time <dbl>, distance <dbl>, hour <dbl>, minute <dbl>, time_hour <dttm>
    #> # i Use `print(n = ...)` to see more rows, and `colnames()` to see all variable names
  • Standardise to compute per group metrics:

    popular_dests %>%
      filter(arr_delay > 0) %>%
      mutate(prop_delay = arr_delay / sum(arr_delay)) %>%
      select(year:day, dest, arr_delay, prop_delay)
    #> # A tibble: 131,106 x 6
    #> # Groups:   dest [77]
    #>    year month   day dest  arr_delay prop_delay
    #>   <int> <int> <int> <chr>     <dbl>      <dbl>
    #> 1  2013     1     1 IAH          11  0.000111
    #> 2  2013     1     1 IAH          20  0.000201
    #> 3  2013     1     1 MIA          33  0.000235
    #> 4  2013     1     1 ORD          12  0.0000424
    #> 5  2013     1     1 FLL          19  0.0000938
    #> 6  2013     1     1 ORD           8  0.0000283
    #> # ... with 131,100 more rows
    #> # i Use `print(n = ...)` to see more rows

A grouped filter is a grouped mutate followed by an ungrouped filter. I generally avoid them except for quick and dirty manipulations: otherwise it’s hard to check that you’ve done the manipulation correctly.

Functions that work most naturally in grouped mutates and filters are known as window functions (vs. the summary functions used for summaries). You can learn more about useful window functions in the corresponding vignette: vignette("window-functions").

5.7.1 Exercises

  1. Refer back to the lists of useful mutate and filtering functions. Describe how each operation changes when you combine it with grouping.

  2. Which plane (tailnum) has the worst on-time record?

  3. What time of day should you fly if you want to avoid delays as much as possible?

  4. For each destination, compute the total minutes of delay. For each flight, compute the proportion of the total delay for its destination.

  5. Delays are typically temporally correlated: even once the problem that caused the initial delay has been resolved, later flights are delayed to allow earlier flights to leave. Using lag(), explore how the delay of a flight is related to the delay of the immediately preceding flight.

  6. Look at each destination. Can you find flights that are suspiciously fast? (i.e. flights that represent a potential data entry error). Compute the air time of a flight relative to the shortest flight to that destination. Which flights were most delayed in the air?

  7. Find all destinations that are flown by at least two carriers. Use that information to rank the carriers.

  8. For each plane, count the number of flights before the first delay of greater than 1 hour.
